🖥️ HP Z6 G5 Workstation – Configured Specs
🔧 Processor
-
CPU: AMD Ryzen Threadripper PRO 7995WX
-
Cores/Threads: 96 cores / 192 threads
-
Base Clock: ~2.50 GHz
-
Max Boost Clock: Up to ~5.1 GHz
-
Cache: 384 MB L3
-
TDP: ~350 W
-
Chipset: AMD PRO 695
-
Socket: SP6
Use Case: Extreme multi-thread workloads – 3D rendering, scientific simulation, VFX, heavy virtualization.
🧠 Memory (RAM)
-
Installed: 64 GB DDR5 ECC Registered (typically 2×32 GB or 4×16 GB RDIMMs)
-
Type: DDR5-5600 ECC Registered
-
Slots: 8 DIMM slots supporting up to 1 TB total
-
Max Supported: up to 1 TB DDR5 ECC RDIMM
💾 Storage
-
Primary Storage: 1 TB NVMe SSD (PCIe, often Gen 4) — ultra-fast for OS, applications, and project files
-
Expansion: Multiple additional M.2 and SATA slots supported for more SSD/HDD storage or RAID configurations
🎮 Graphics
-
GPU: NVIDIA RTX 4000 8 GB GDDR6 VRAM
-
Note: HP supports the RTX 4000 class cards in this workstation when powered with appropriate PSU (1125 W recommended)
-
-
Use Case: Professional graphics, realtime rendering, 3D CAD/CAM, GPU-accelerated compute tasks
🔌 Connectivity & Expansion
-
PCIe Expansion: Multiple PCIe Gen5 & Gen4 slots for add-in cards (GPUs, networking, storage controllers)
-
USB: Variety of USB-A & USB-C ports (gen varies by configuration)
-
Networking: Gigabit Ethernet (additional 10GbE options may be supported)
-
RAID: Supports RAID 0/1/5/10 for storage arrays
⚡ System & Power
-
Power Supply: Up to 1125 W PSU (recommended for high-end GPU + CPU)
-
Chassis: Full-size Tower Workstation
-
Operating Systems: Windows 11 Pro for Workstations (64-bit), Linux variants supported
-
Memory ECC: Yes — for mission-critical stability
🧩 Typical Real-World Use Cases
✅ Professional 3D rendering & animation
✅ Large-scale scientific simulation
✅ Video editing / VFX workflows
✅ Virtualization & compute-intensive workloads
✅ CAD/CAM engineering & architectural visualization
Quick Summary (Your Exact Config):
-
CPU: AMD Ryzen Threadripper PRO 7995WX (96C/192T)
-
RAM: 64 GB DDR5 ECC Registered
-
Storage: 1 TB NVMe SSD
-
Graphics: NVIDIA RTX 4000 8 GB GDDR6
-
PSU: 1125 W Workstation Power Supply
-

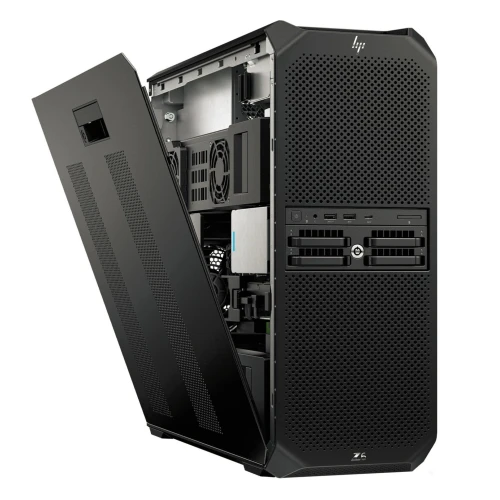

Platform: HP Z6 G5 A Workstation Tower
