Intel Xeon W-2104

• 4 Cores / 4 Threads

• Base Clock: 3.2 GHz

• Smart Cache: 8.25 MB

• TDP: 120W

• Supports ECC DDR4 RAM

• Socket: LGA2066

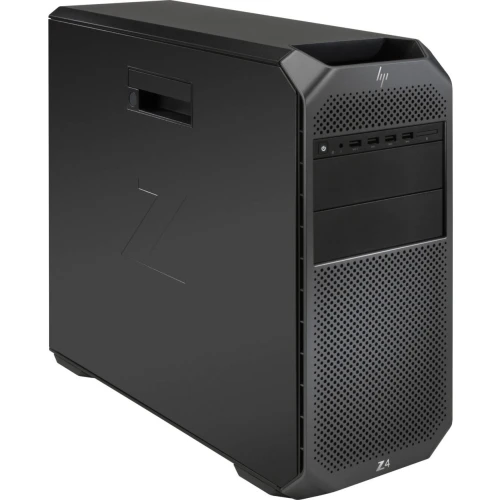

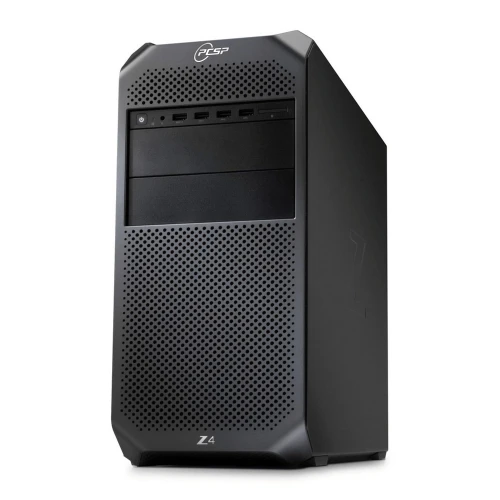

(Note: “2104G” corresponds to the Xeon W-2104 used in HP Z4 G4)

✔ Memory (RAM)

32GB DDR4 ECC Registered RAM

• Speed: 2666MHz or 2933MHz (depending on module)

• Supports up to 512GB across 8 DIMM slots

✔ Storage

1. 256GB SSD (M.2 NVMe OR SATA based on configuration)

   • Fast boot drive

2. 2TB HDD (3.5" SATA)

   • 7200RPM

   • Storage for files/applications

✔ Graphics Card

NVIDIA GTX 750 Ti – 2GB GDDR5

• CUDA Cores: 640

• Memory Bus: 128-bit

• Outputs: HDMI / DVI / DisplayPort (varies by OEM design)

✔ Motherboard / Chipset

• Intel C422 Workstation Chipset

• Supports:

  • Xeon W processors

  • ECC RAM

  • Multiple PCIe slots

  • HP Z-series reliability & cooling

✔ Expansion Slots

• 2 × PCIe 3.0 x16 (GPU/expansion)

• 1 × PCIe 3.0 x8

• 1 × PCIe 3.0 x4

• 1 × PCIe 3.0 x1

✔ Drive Bays

• 2 × internal 3.5" bays (HDD)

• 2 × internal 2.5" bays (SSD/HDD)

• M.2 NVMe slots for SSDs

✔ Ports

Front Ports

• 2 × USB 3.1 Gen1

• 2 × USB 3.1 Gen2

• Headphone Jack

• Power Button

Rear Ports

• 6 × USB 3.1

• 2 × USB 2.0

• 1 × Gigabit Ethernet LAN (RJ-45)

• Audio In/Out

• Optional Serial Port

✔ Networking

• Gigabit Ethernet

• Optional WiFi + Bluetooth card

✔ Power Supply

750W High-Efficiency PSU

• 80+ Platinum Rated

• Supports dedicated GPUs

✔ Operating System

• Windows 10 Pro / Windows 11 Pro / Linux (depending on your install)

⭐ Overall Performance Summary

This build is an entry-level workstation suitable for:

✓ AutoCAD

✓ Office work

✓ Graphic design

✓ Light video editing

✓ General business use

✓ Light gaming
